Gallery

click on the photos to enlarge them

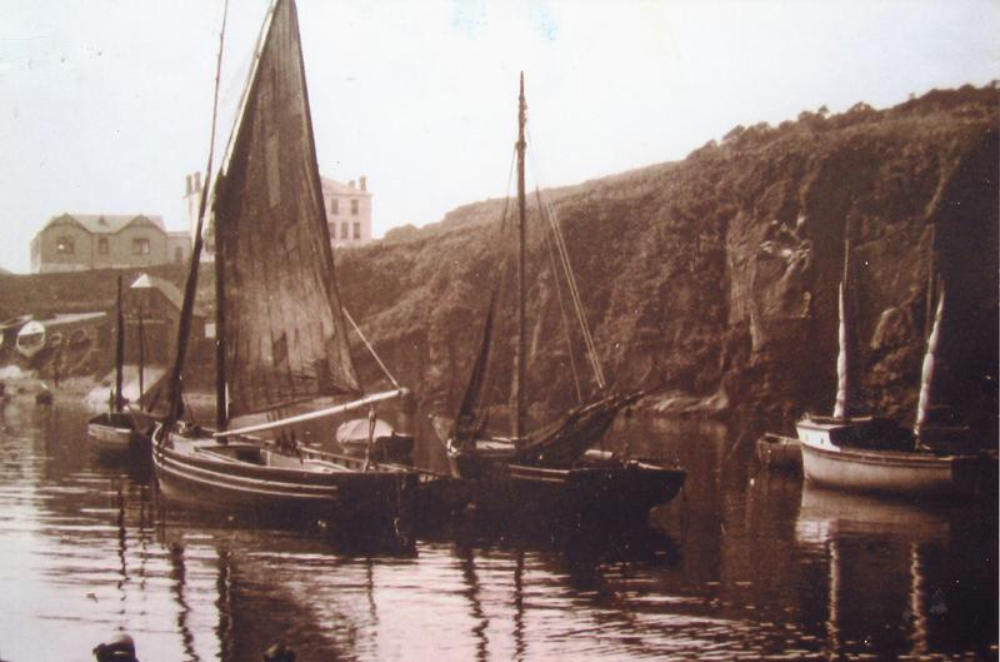

St. Agnes in dunmore around 1910-1915

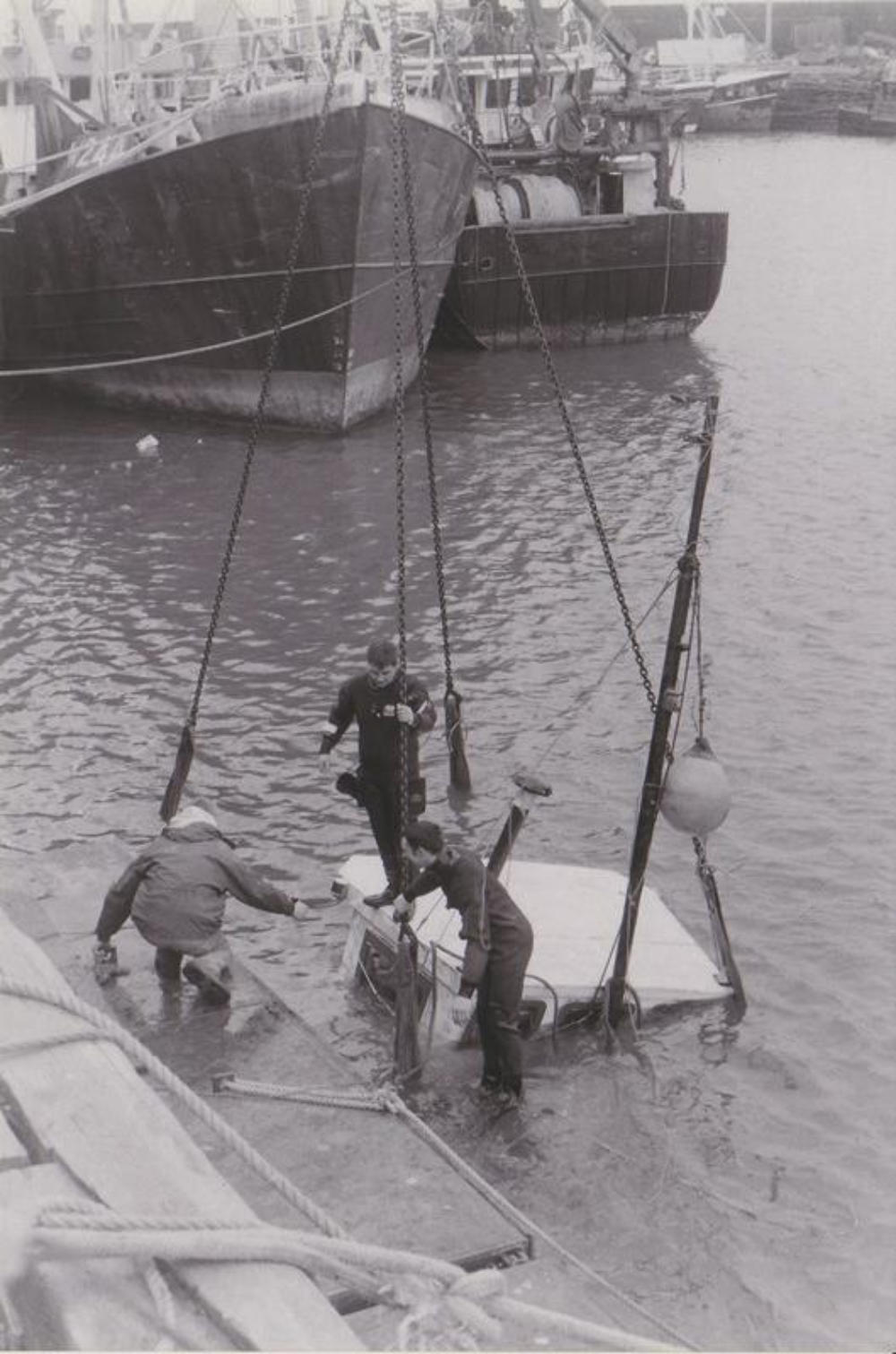

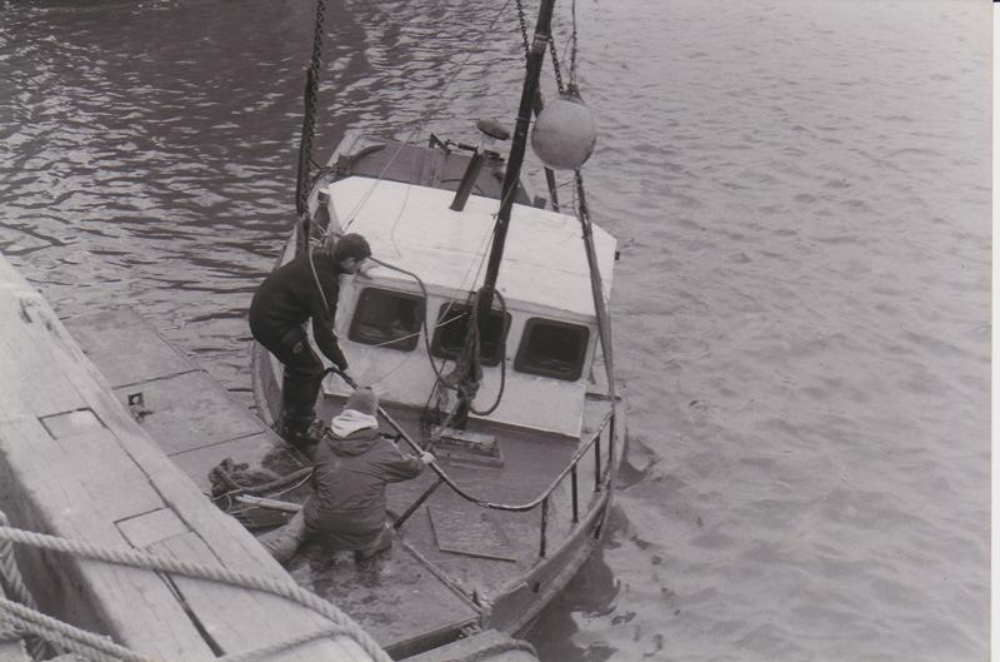

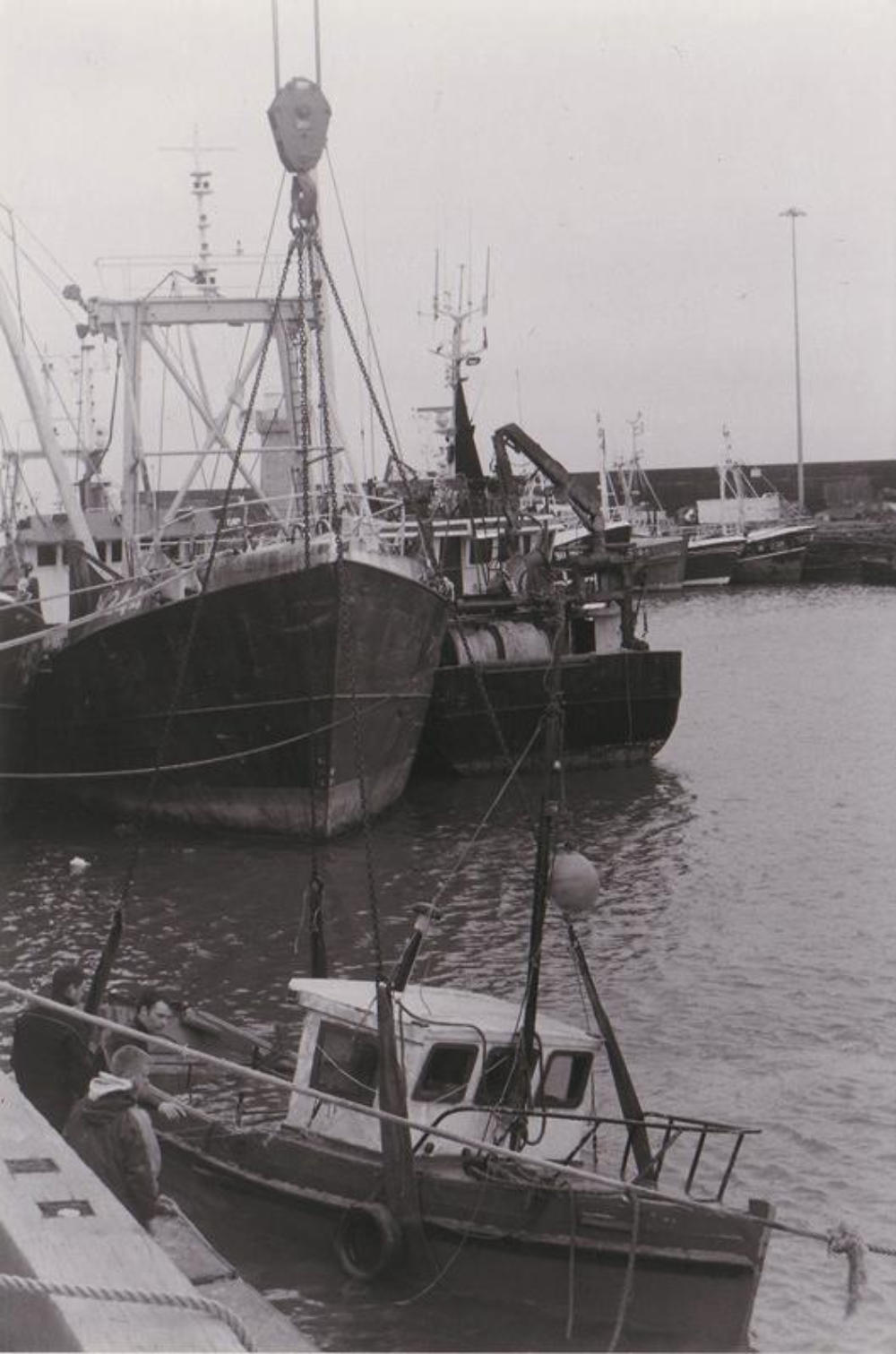

Being lifted from the dock in Dunmore in 2005 after she had sunk

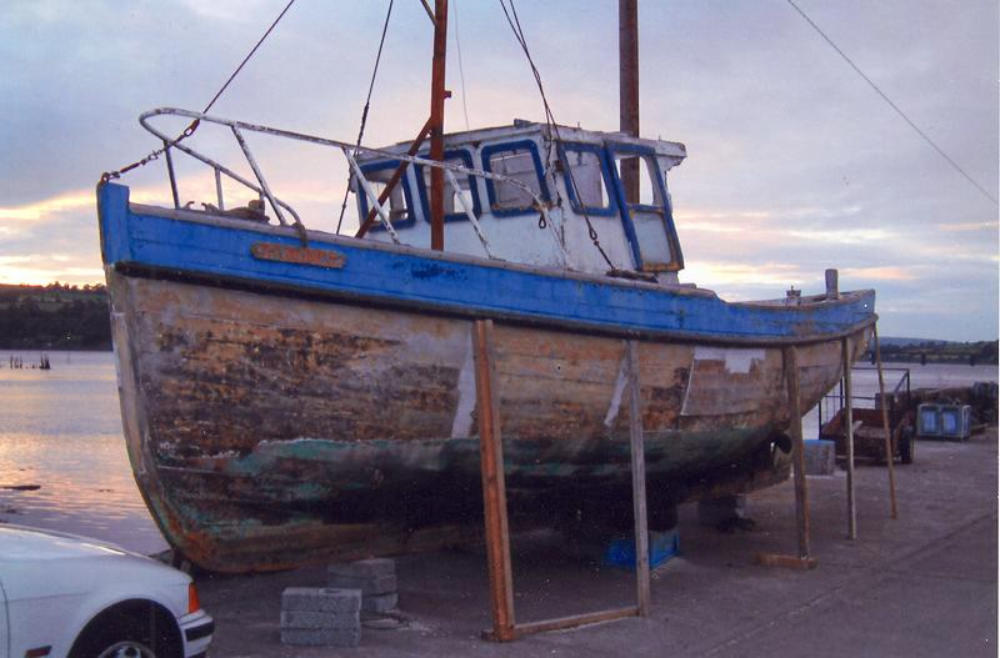

On the quay in Cheekpoint, Co. Waterford, around 2000

Being lifted from the dock in Dunmore in 2005 after she had sunk

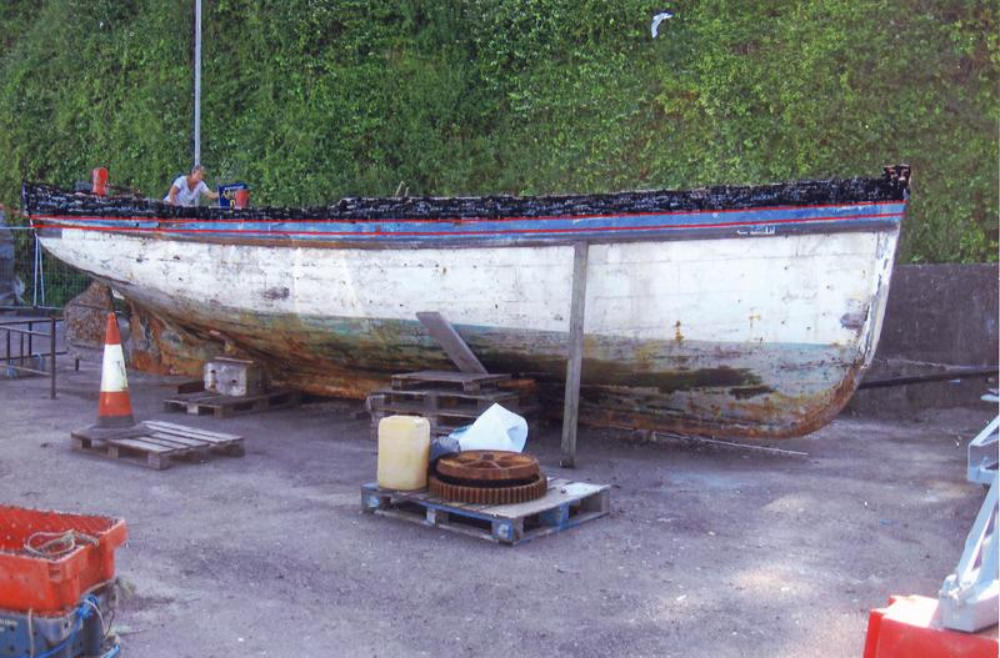

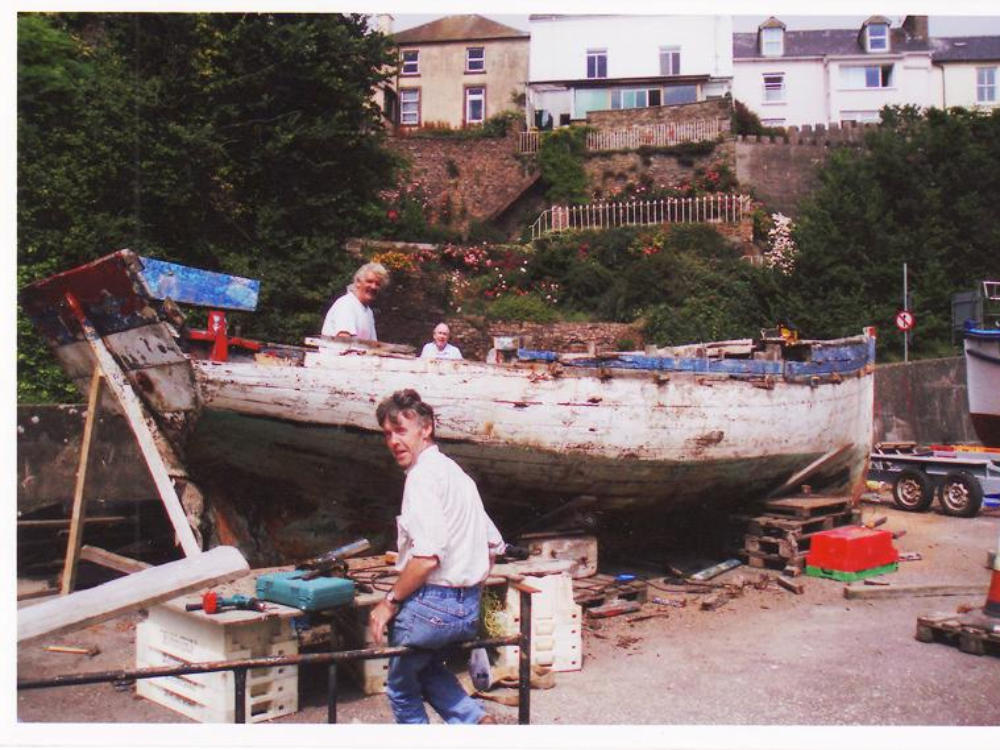

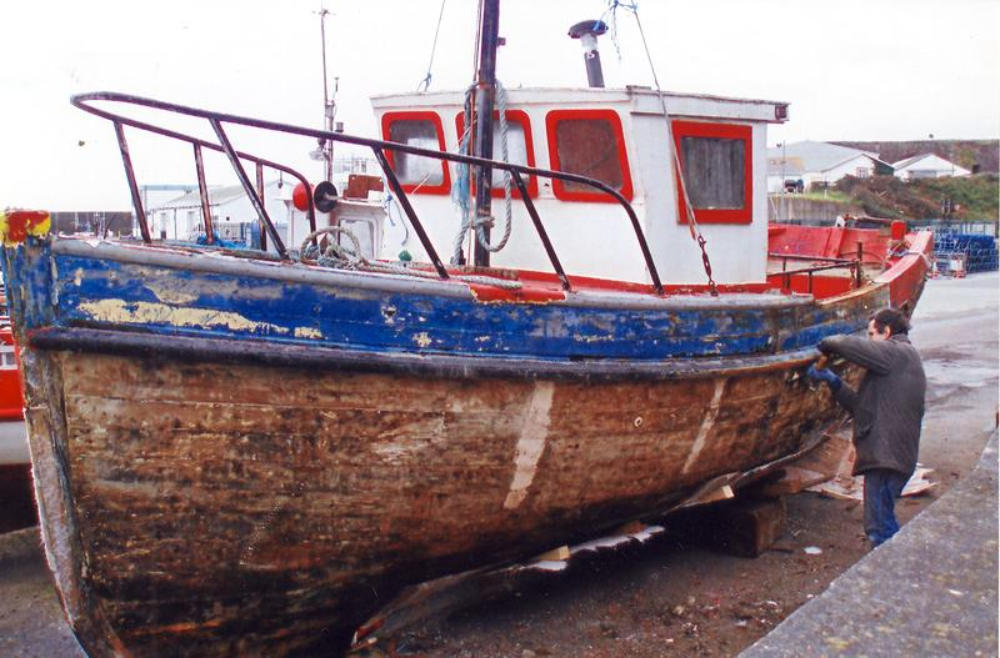

The hull, before she was cut back down to original sheer, which was much lower

Cutting down to original sheer

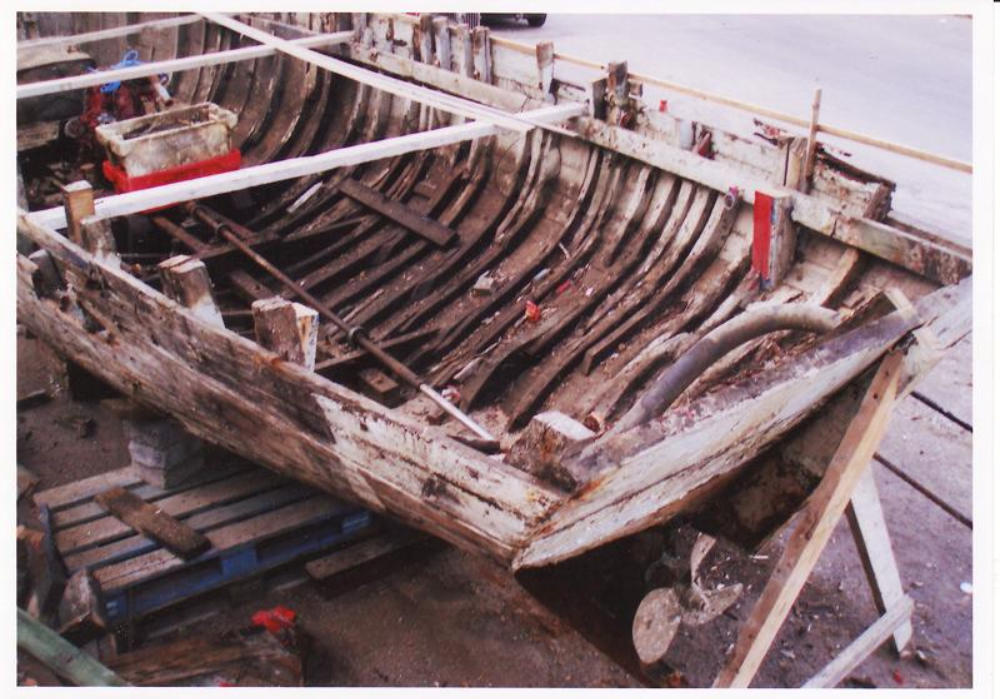

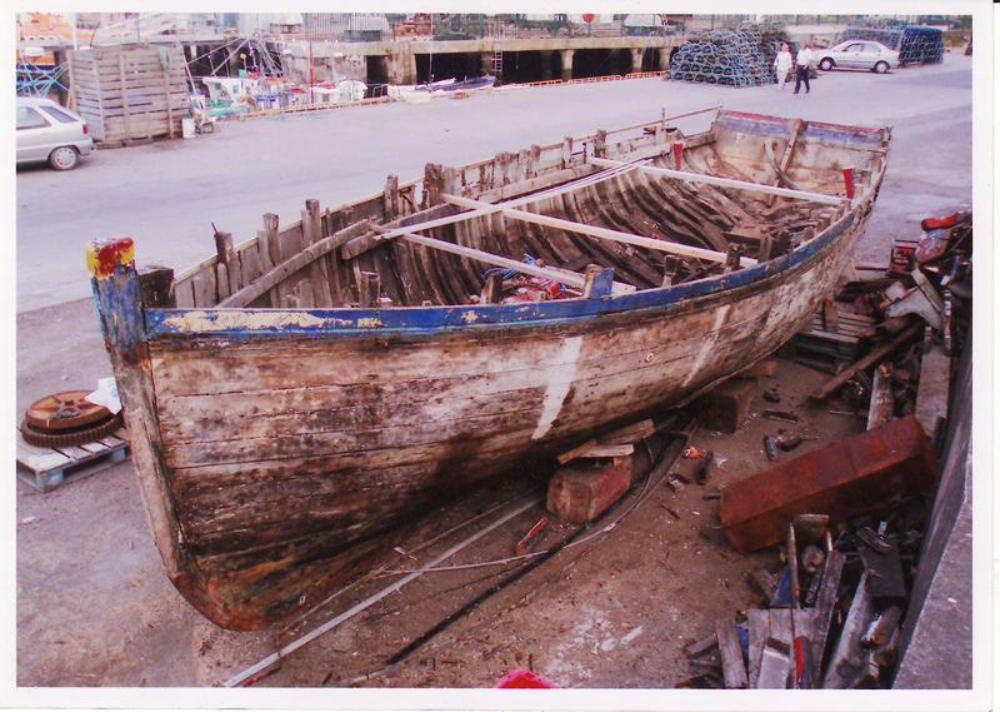

Deck and wheelhouse removed

Removing fiber glass from the hull to get at the timber

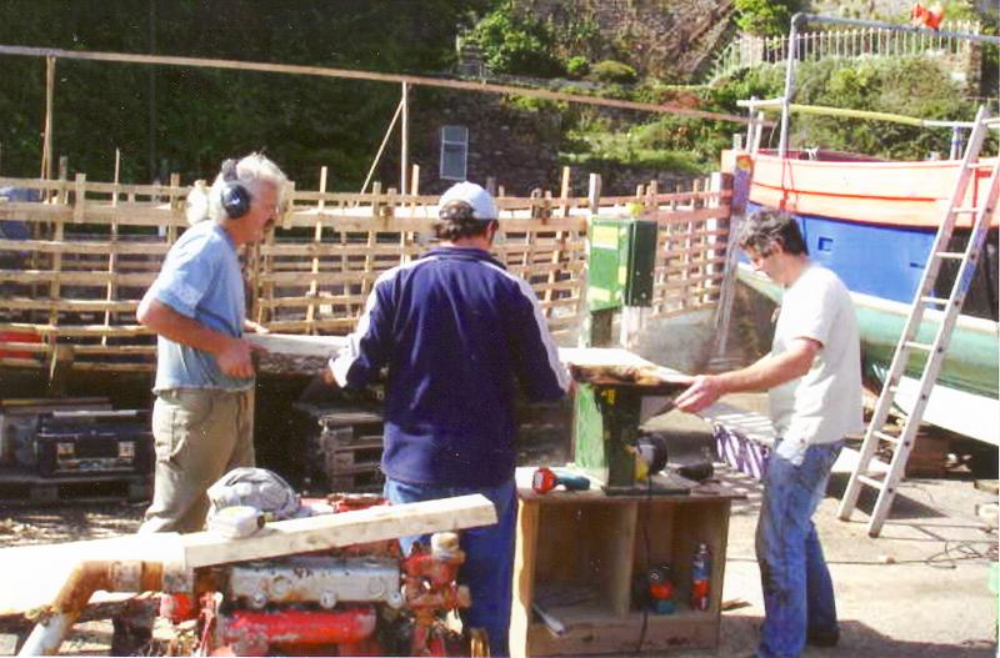

Cutting new sawn frames

Sheer decided on

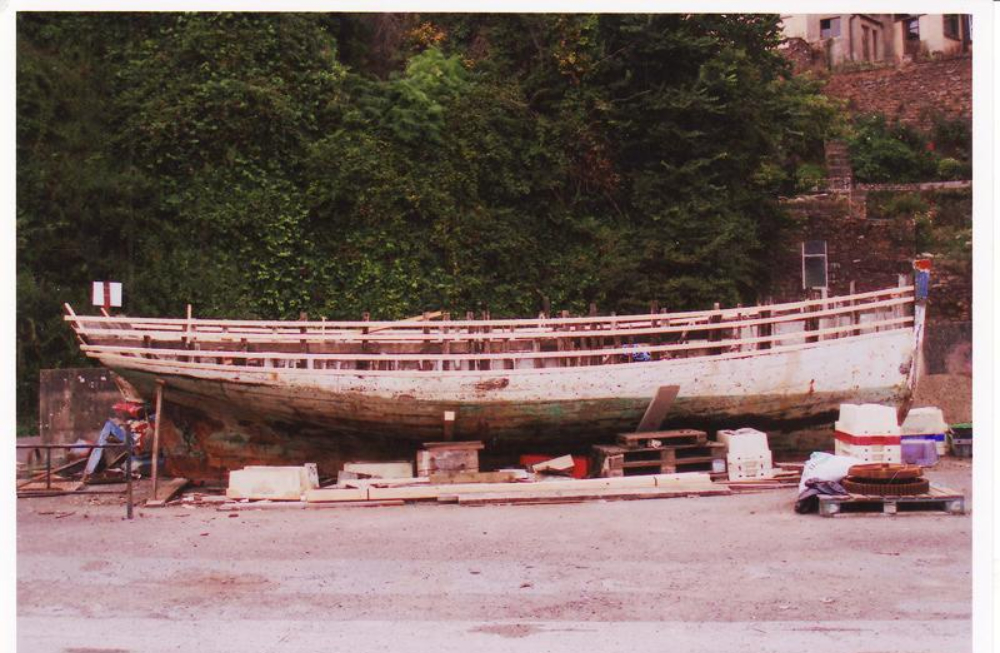

Old planks removed, new battons around the boat to hold the original shape and to keep original frames in place until new ones are cut

New sheer

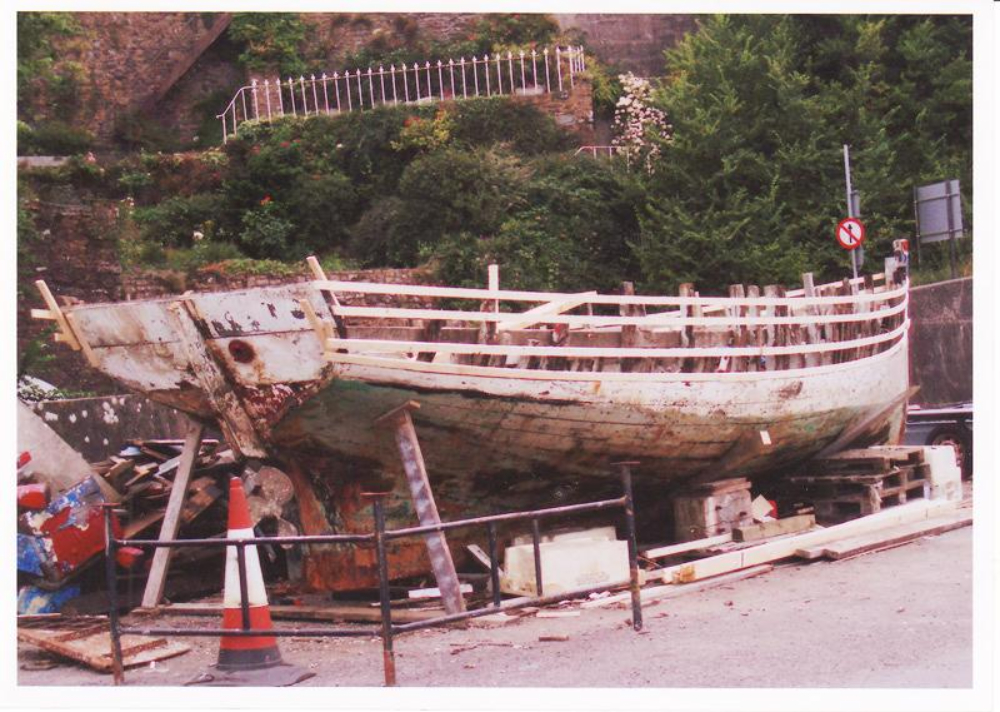

At original sheer

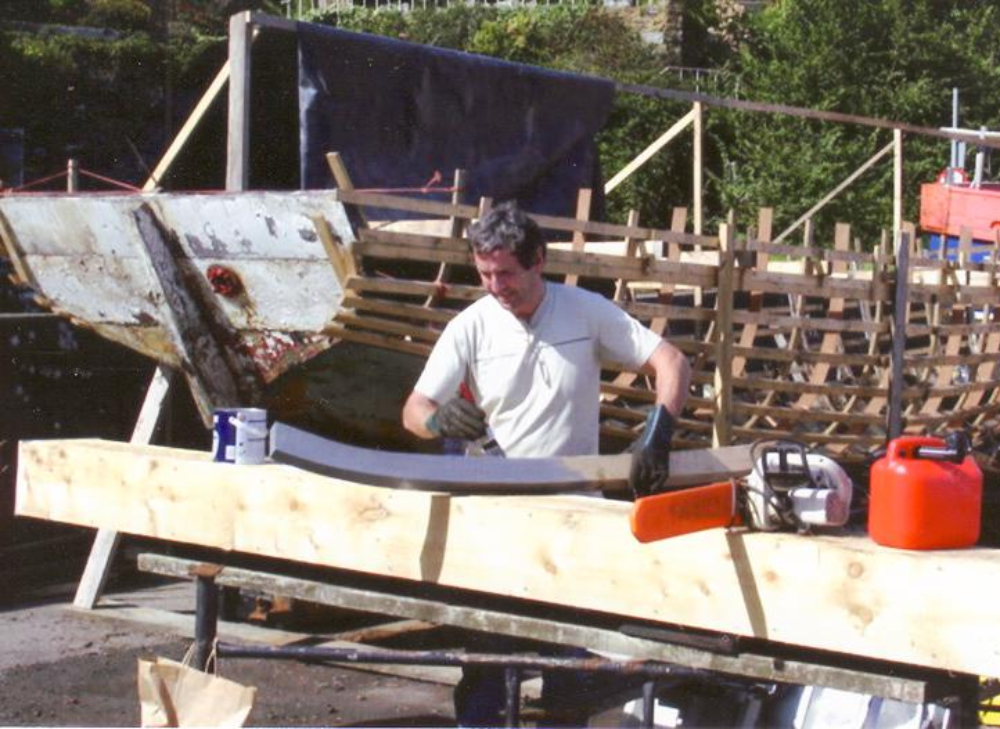

Priming new frames

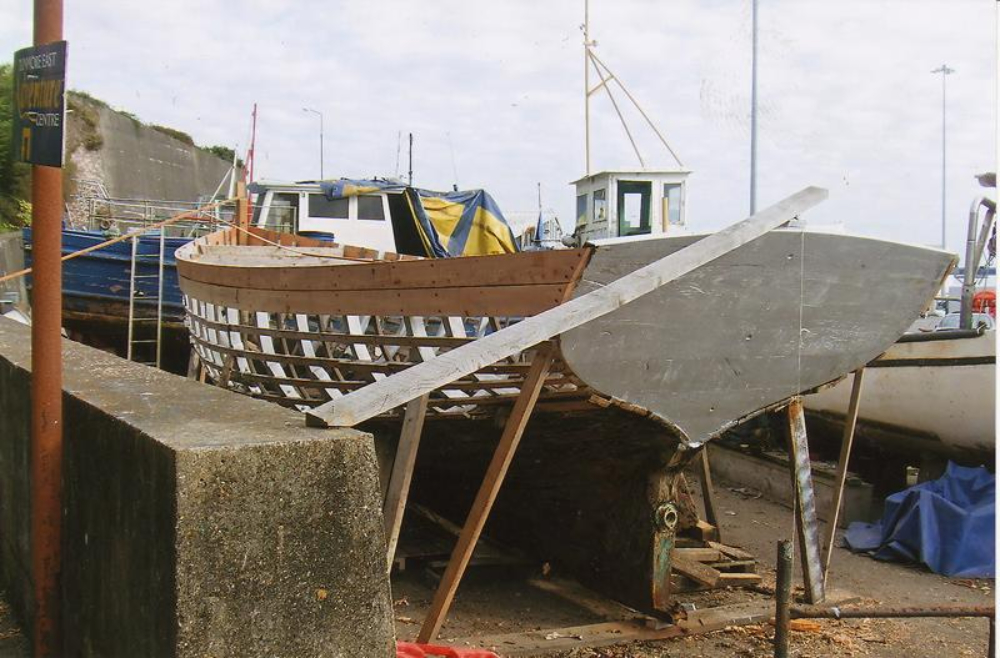

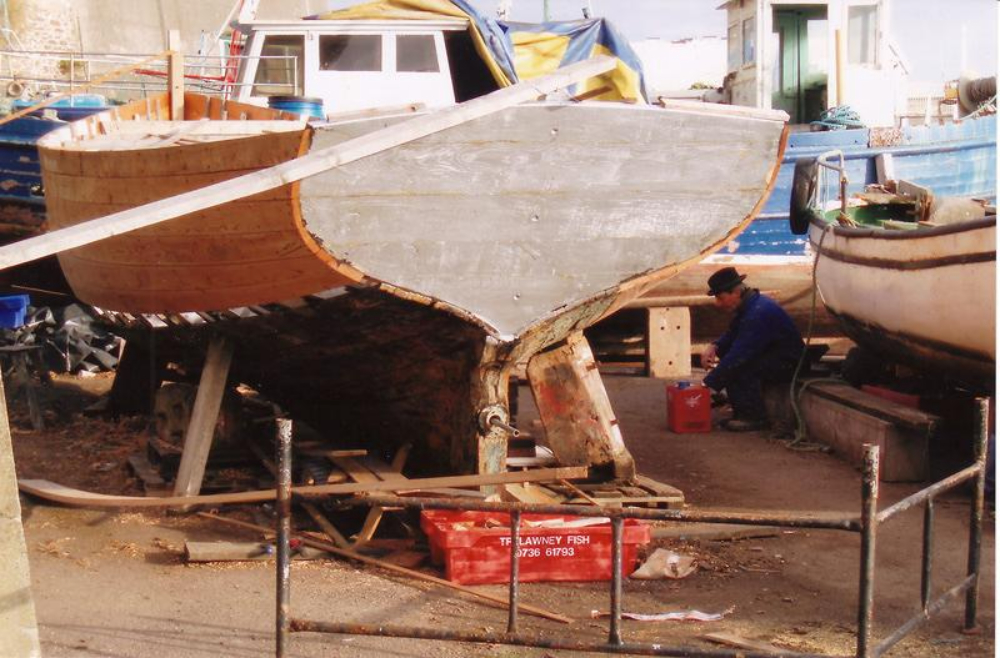

New bow and transom in place, starting to plank

Thomas and Tony deciding on the shape of a frame

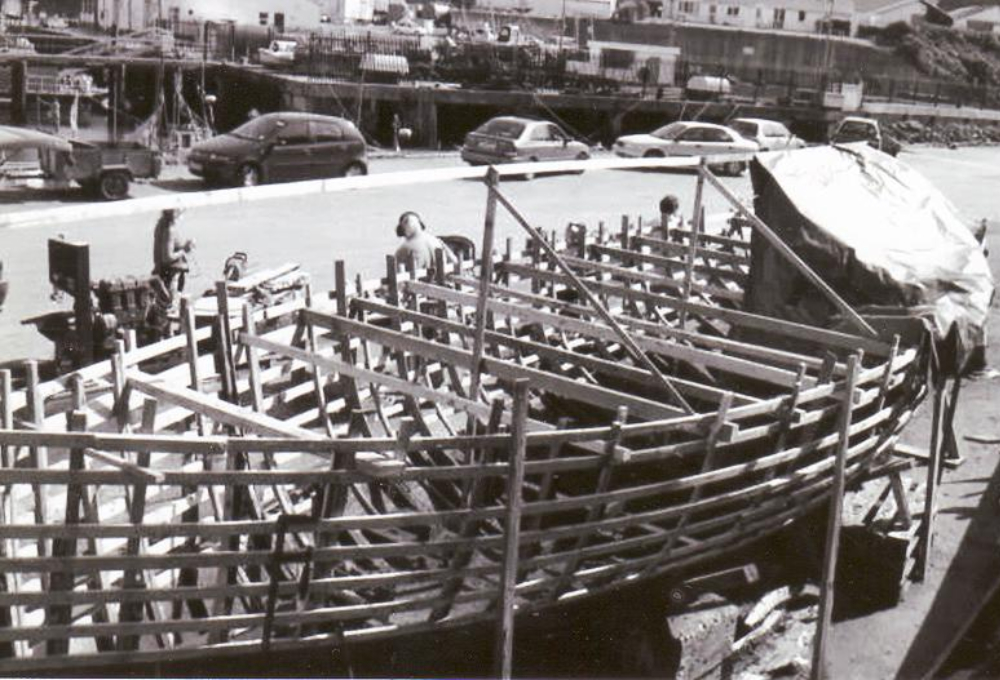

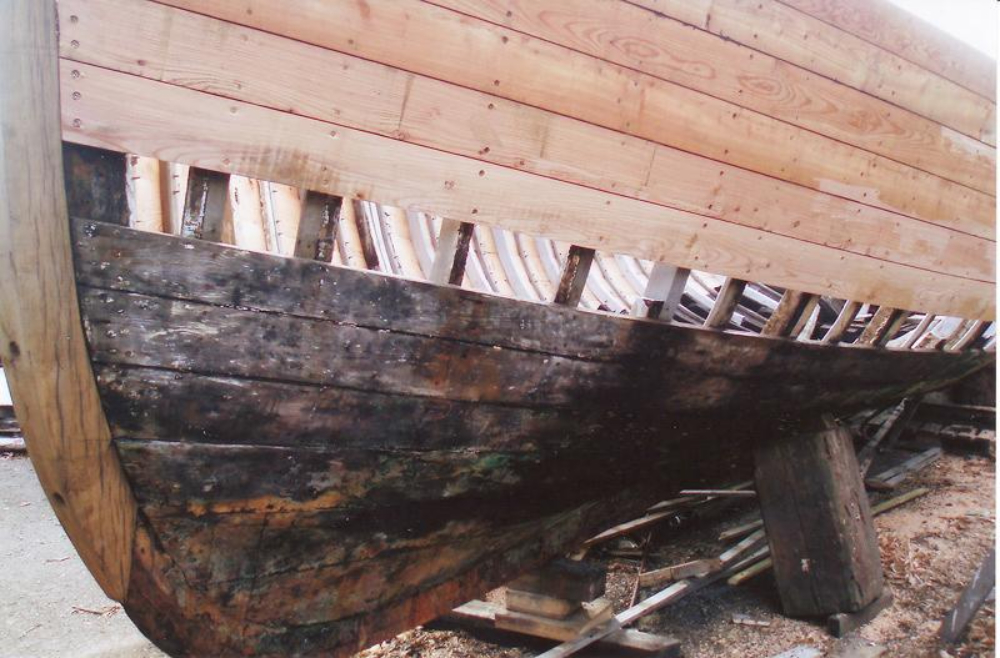

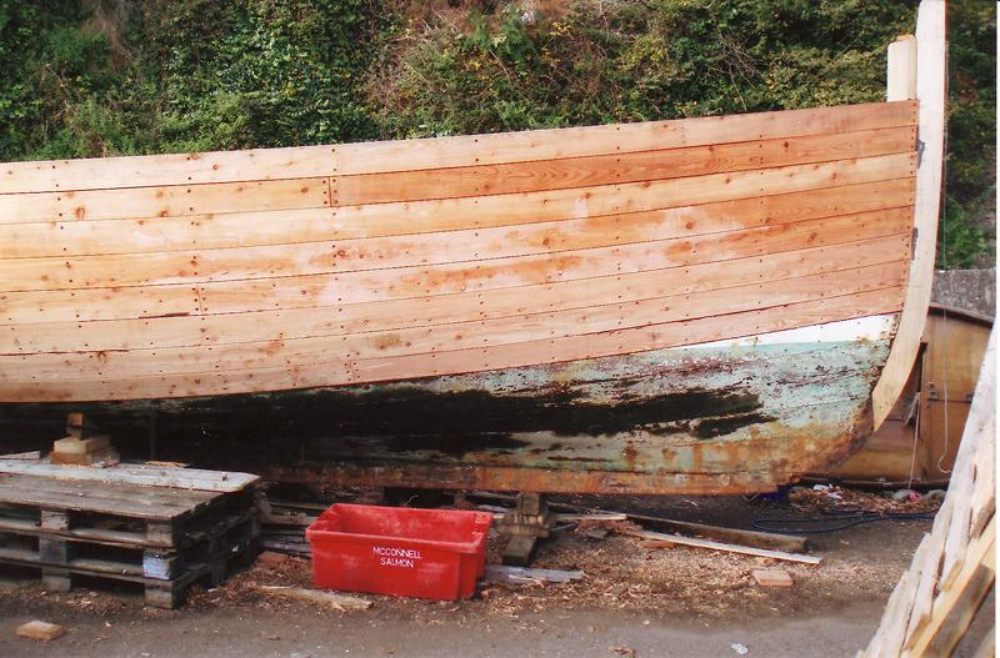

Planking just complete above the water line, original planking meets new

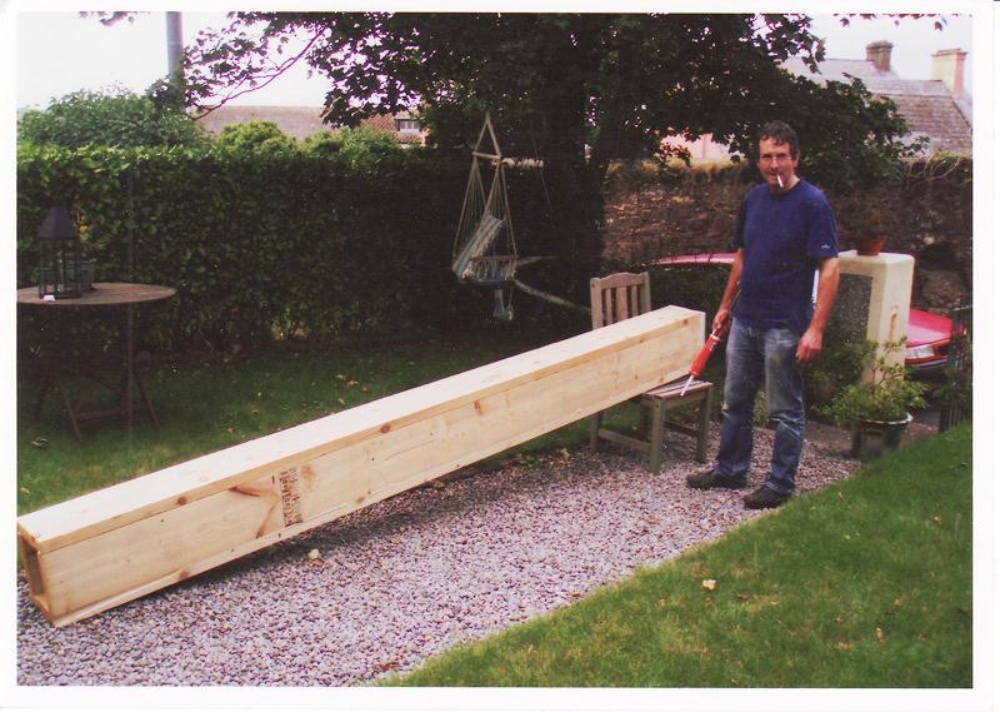

Making a steam box to steam the new steamed frames in

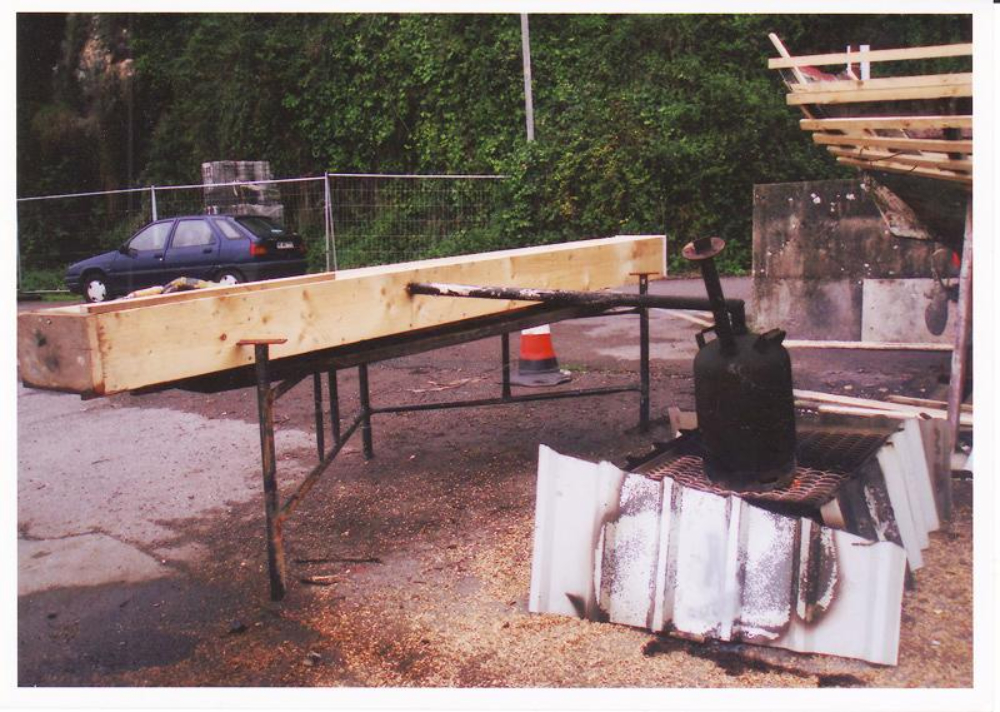

Steam box with gas cylinder attached. The gas cylinder is filled with water and a fire lit under it to produce steam. The steam is piped into the steam box where the oak frames are placed for 2 hours. The steam softens the oak and they are clamped into the boat . When they cool they hold the original shape

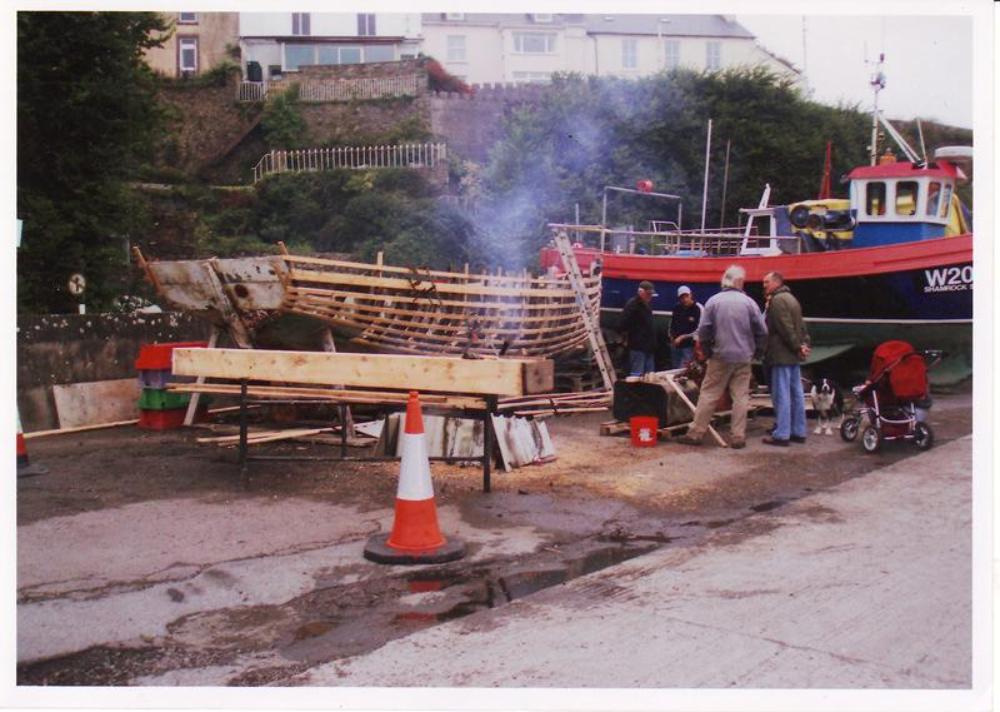

Steam box in operation

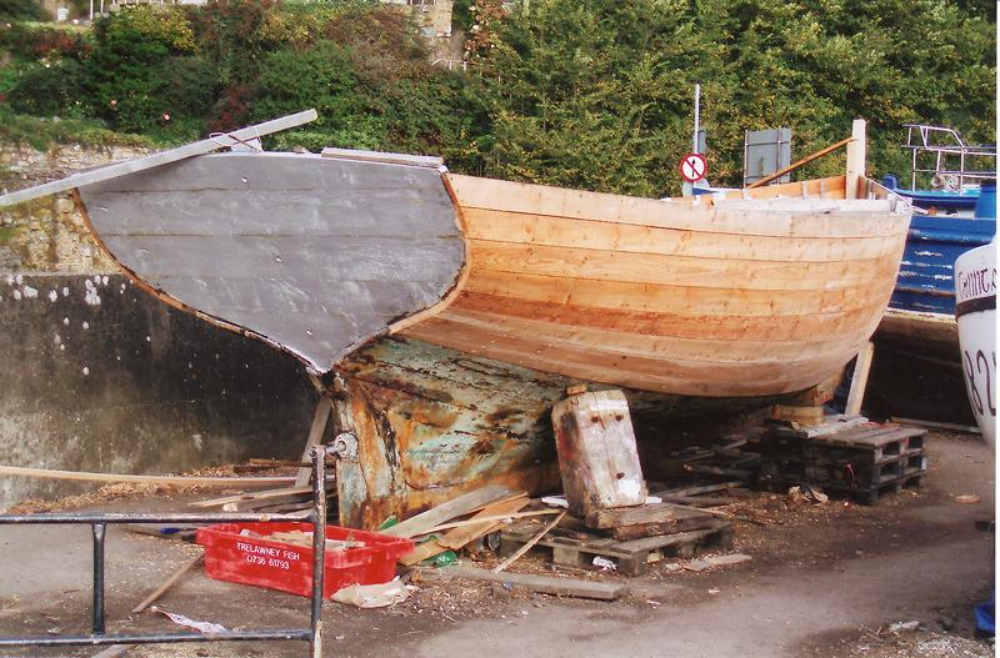

Planking complete above the waterline

Tommy Hannon having a cup of tea

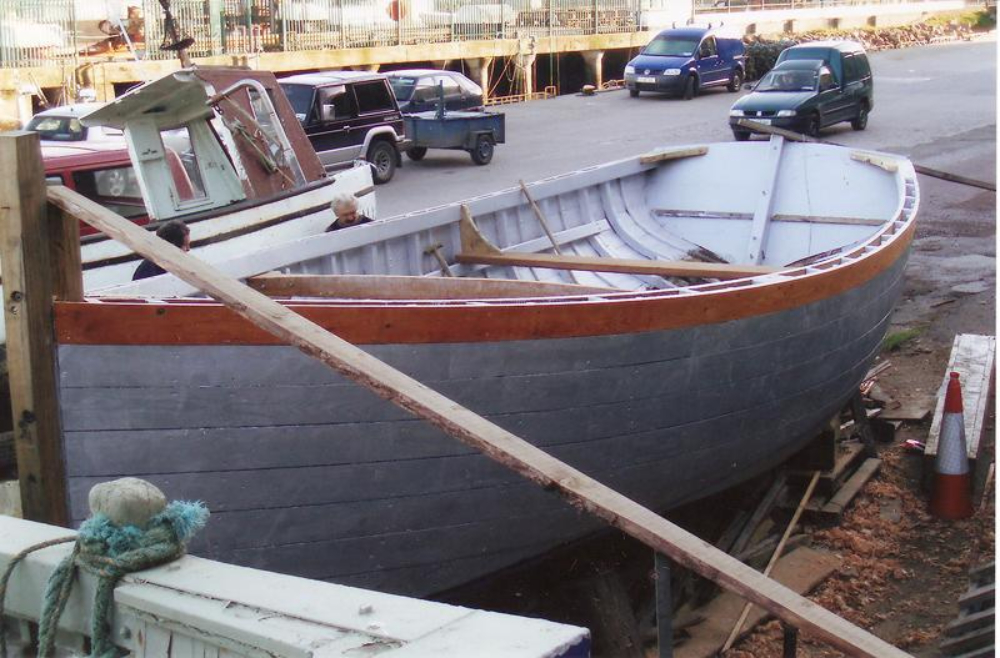

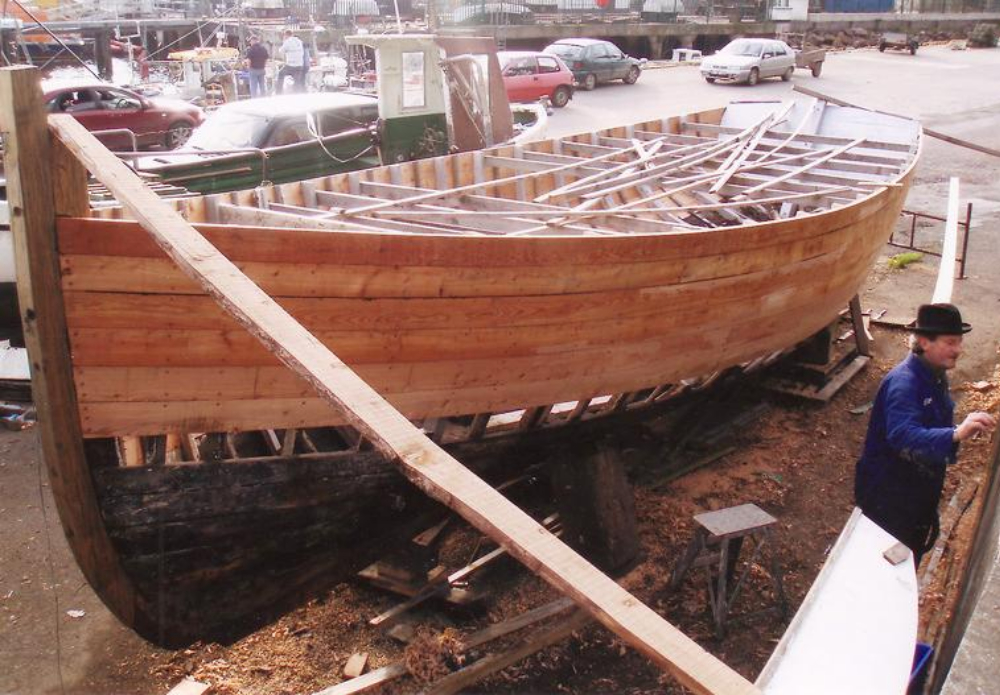

Planking complete above the waterline

Planking just complete above the waterline, original planking meets new

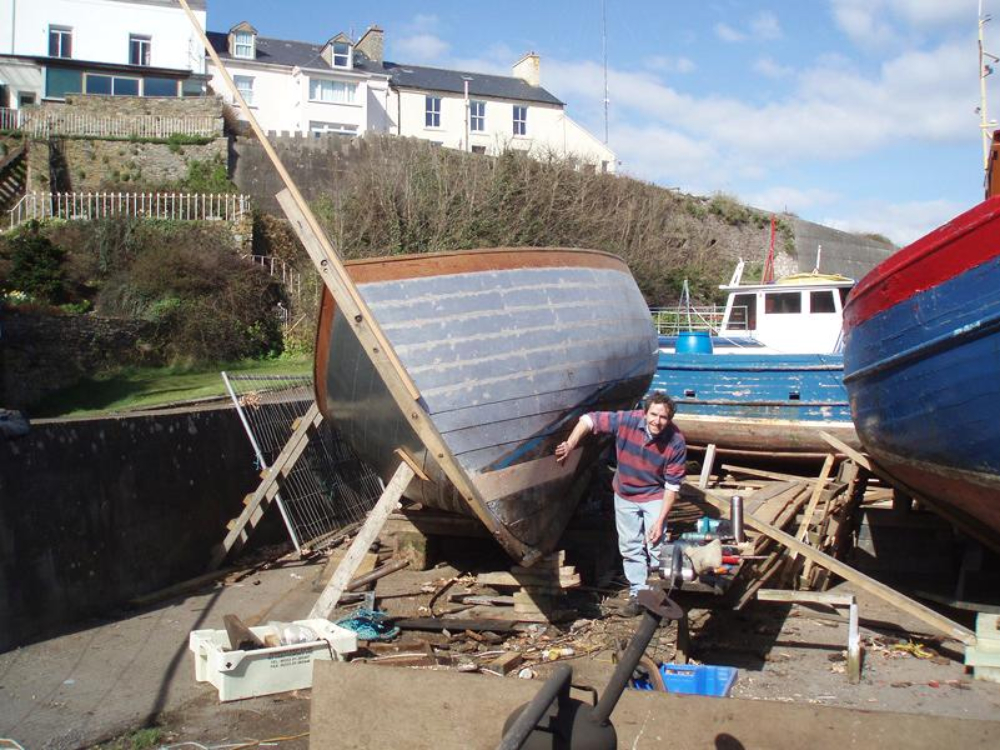

Boat lifted up higher on her side to see what work needed to be done on her bottom, and remove damaged planking

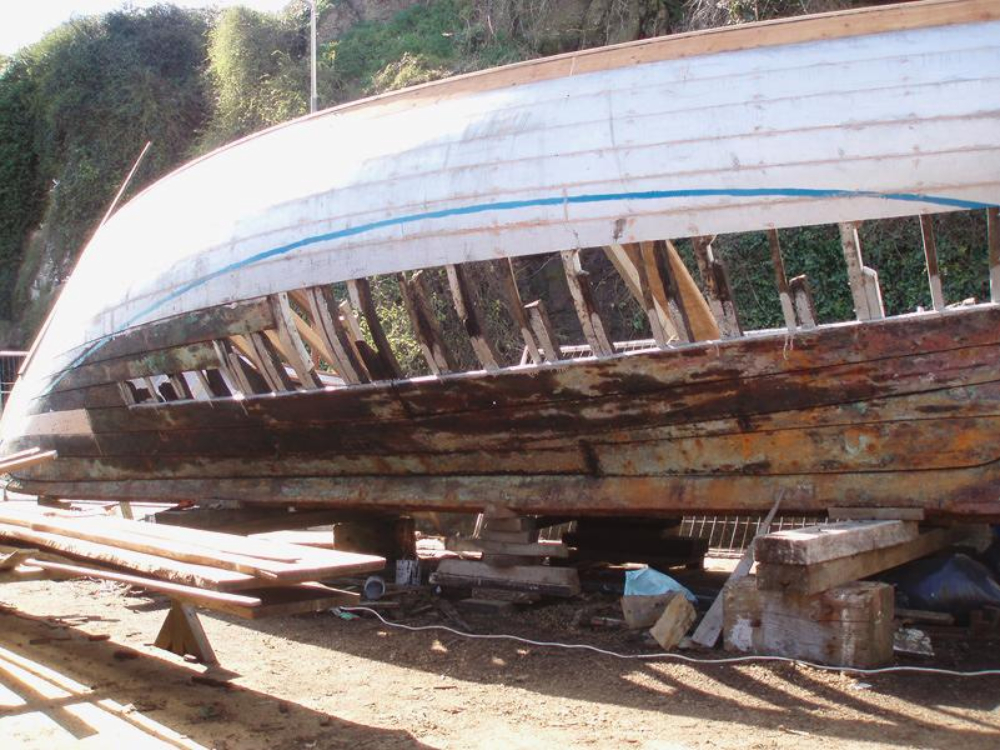

Damaged planking removed

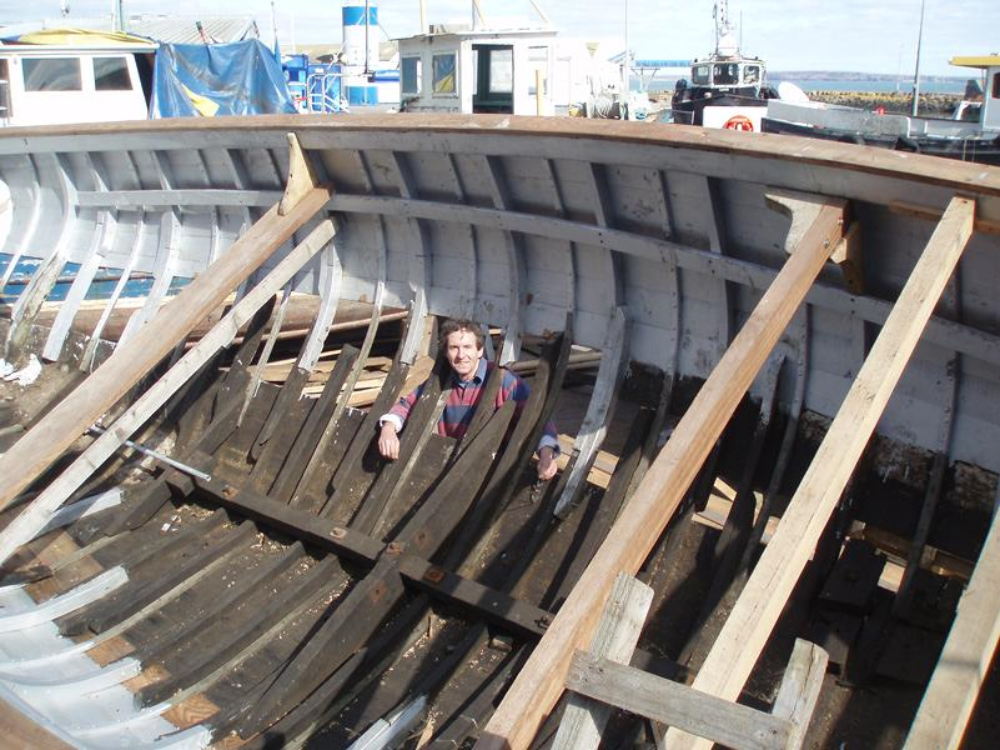

Thomas having a look up through her bottom

Primed new planking

Colette McGrath having a chat with the lads, more tea!

Tommy and Tony. They worked together on the building of the Dunbrody, and on the Thomas McDonagh. True shipwrights

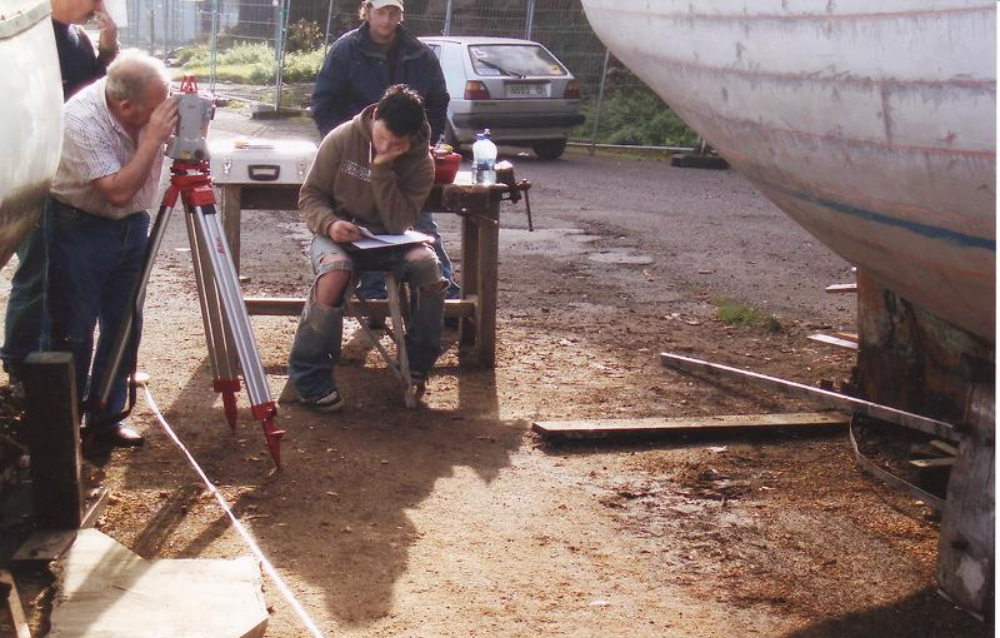

Michael Tyrrell from Arklow about to start to record her lines

Michael in the process of recording lines

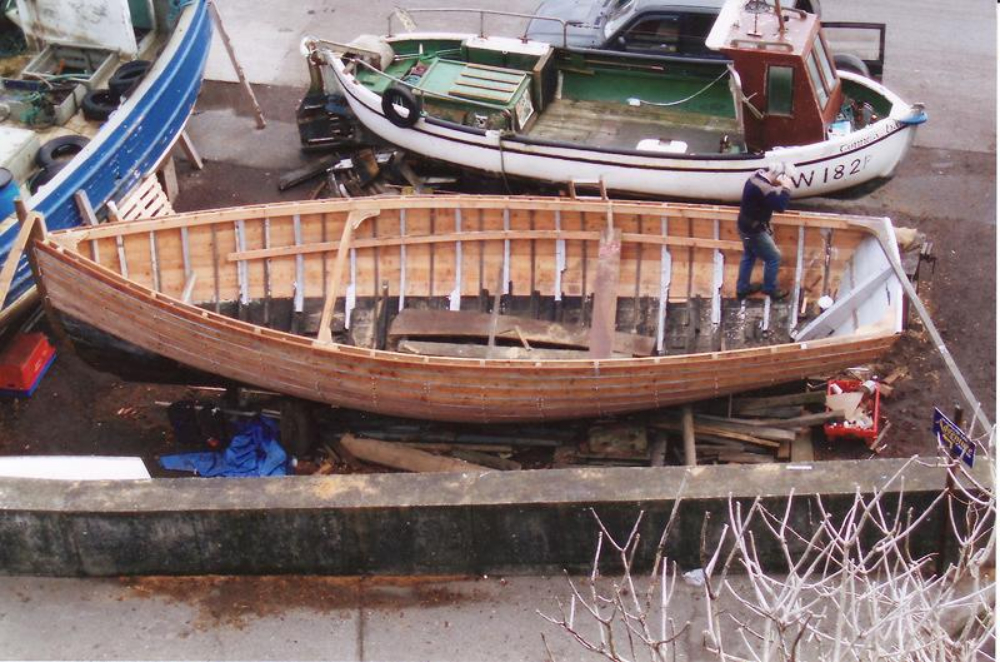

Aerial view

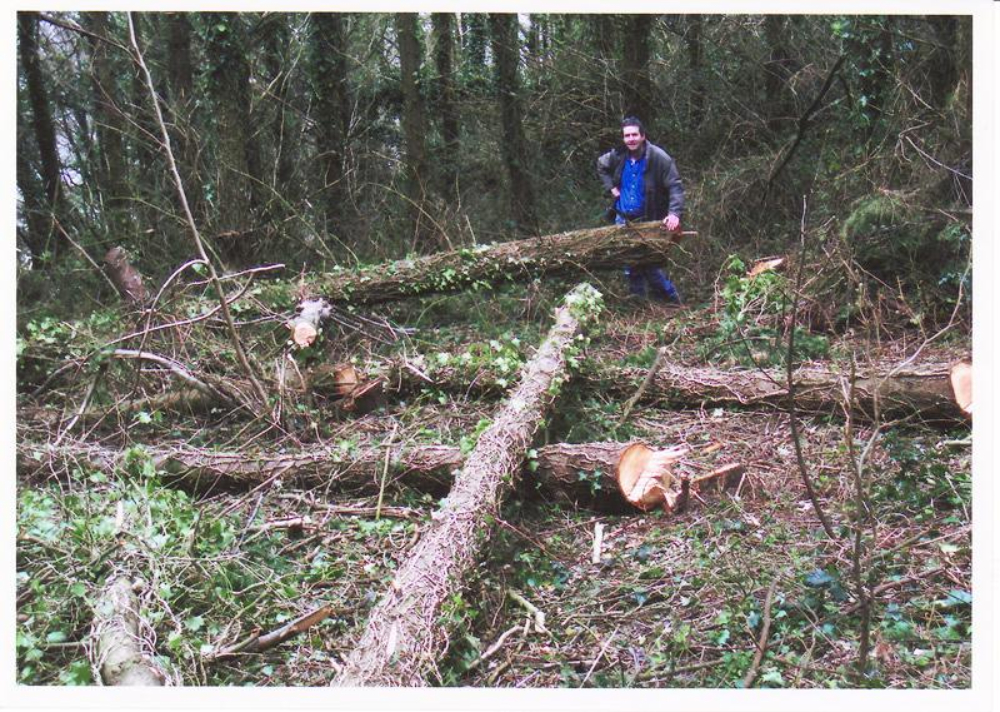

Thomas cutting douglas fir trees for mast and spars. The trees were cut in Walter Whitty's wood on the bank of the river just above Passage East in december 2006

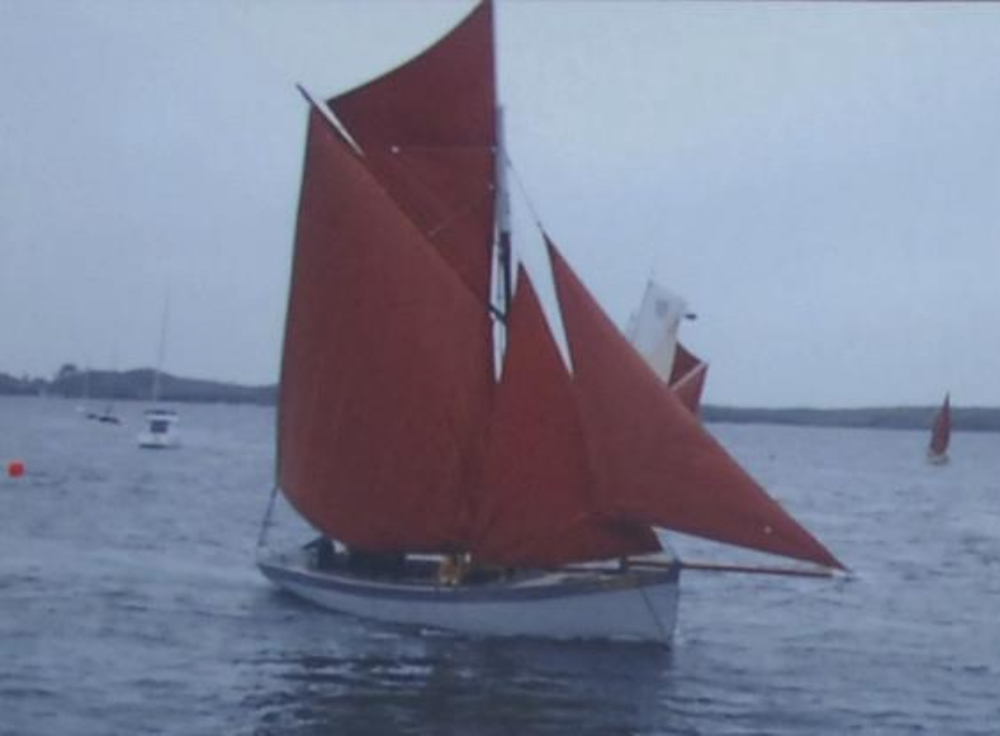

Similar boats from Baltimore
